Medical Facility Hygienic Design Planetary Gear Box 550gf Cm Troque 12mm

SHANGHAI DAITTO MACHINERY CO.,LTD

Medical Facility Hygienic Design Planetary Gear Box 550gf Cm Troque 12mm

Place of Origin : China

Brand Name : DAITTO

Certification : ISO,CE

Model Number : DA012012-1296

MOQ : 500

Contact Now

Voltage: 3 V Application: Optical Equipment, Medical Device
No Load Speed: 9 Rpm No Load Current: 95 MA
Rated Load Speed: 8 Rpm Rated Load Current: 135 MA
Rated Torque: 550 Gf.cm Gear Ratio: 1296:1

Medical Facility Hygienic Design Planetary Gear Box 550gf Cm Troque 12mm


Specifications

Technical Parameter

product

12mm medical facility hygienic design planetary gear box 550gf cm Troque

motor

DC brush motor

torque

550 gf.cm or customized

rated speed

8 rpm
reduction ratio

1296 or customized

noise level

less than 40dB

life time

500 hours

working temperature

-40 to 95℃

Certification

ROHS/ISO9001/ISO14001/SGS/TS16949

Suitable for

Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.

OSD Language

English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.

Description

Model Typical Application Parameters Max Rated Torque of Gear Box Max Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
DA012012-96 3.0 116 90 104 135 81 7.9 29.5 350 1000 96 14.5
DA012012-144 3.0 77 90 69 135 122 11.9 350 1000 144
DA012012-216 3.0 52 90 46 135 182 17.9 350 1000 216
DA012012-256 3.0 44 95 39 135 162 15.9 33.3 550 1100 256 18.3
DA012012-384 3.0 29 95 26 135 243 23.8 550 1100 384
DA012012-576 3.0 19 95 17 135 365 35.7 550 1100 576
DA012012-864 3.0 13 95 12 135 547 53.6 550 1100 864
DA012012-1296 3.0 9 95 8 135 550 53.9 550 1100 1296

above specifications just for reference and customizable according to requirements


Quality Control

* Life Test : being continuously working for required period of time, then stop, then repeat

* Noise Test : being put at the distance of 1m (or other requirements) to the test equipments to test the noise

* Water-proof Test : being put 10mm under the water working for 2 weeks and 100m under the water working for 12 hours

* Salt Spray Test : salt spray can test the products’ resistance to corrosion
* Impact Test : two objects striking each other at high relative speeds
* Storage Test : being stored under normal temperature for 1 or 2 years to test stability
* Environmental Related Substance


Wholesale Medical Facility Hygienic Design Planetary Gear Box 550gf Cm Troque 12mm from china suppliers

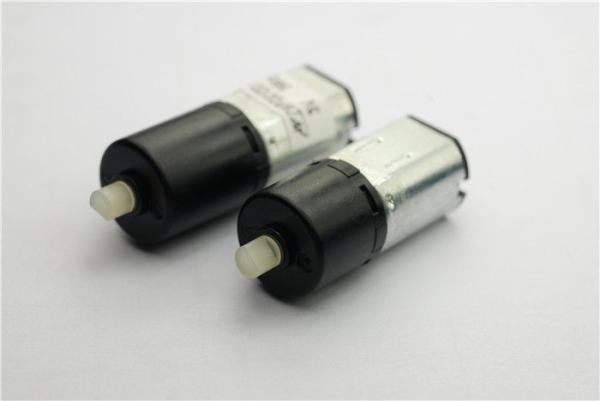

Medical Facility Hygienic Design Planetary Gear Box 550gf Cm Troque 12mm Images
